VEVOR Shower Curb Kit 48" x 72"
Overview

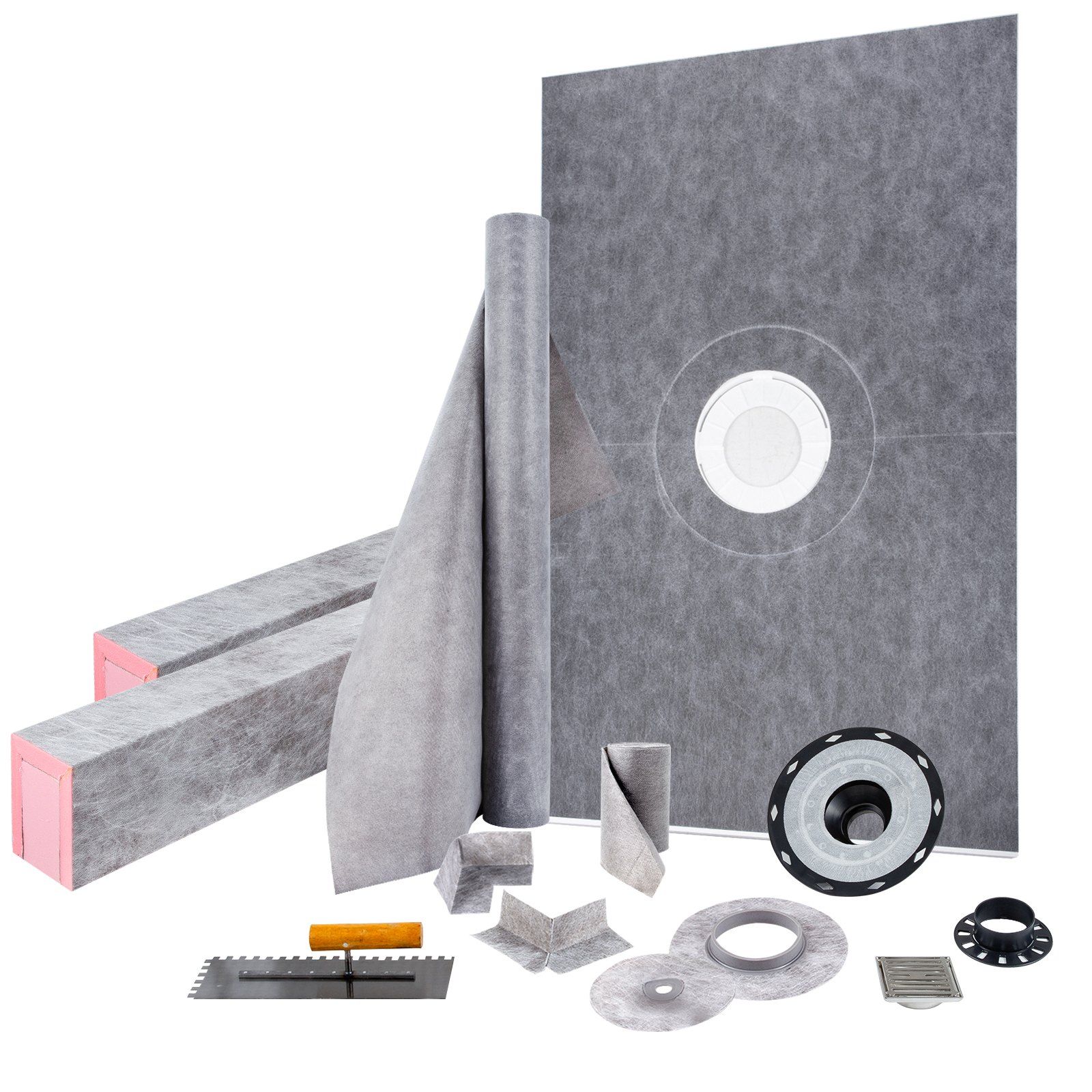

Create a watertight foundation for your grooming or washing station with the VEVOR Shower Curb Kit. Designed to handle high moisture and splashing, this kit is ideal for building durable, waterproof spaces that can double as dog bathing stations or utility wash areas. With quality materials and an easy setup, it’s a smart solution for pet owners and professionals alike.
Highlights

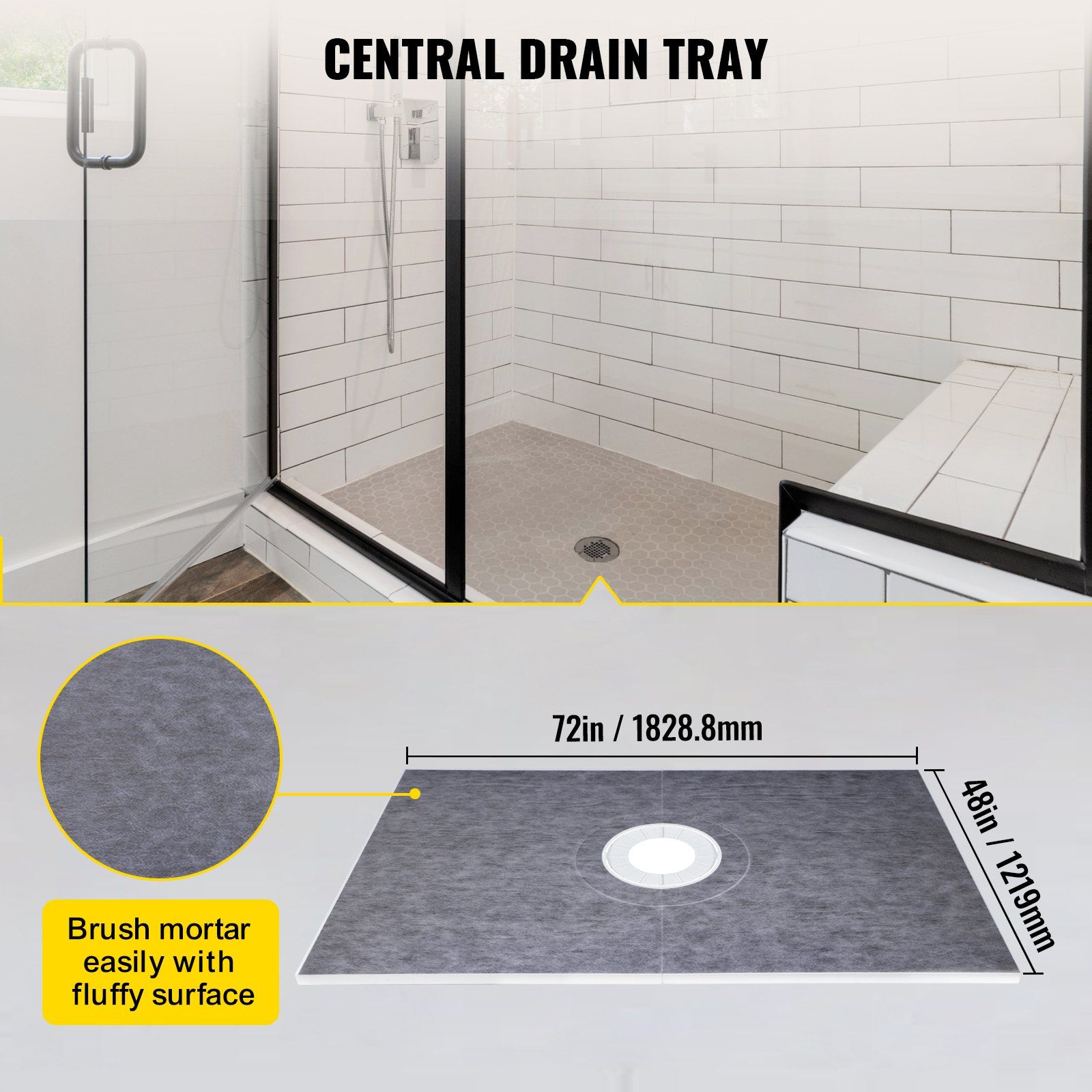

Premium Shower Tray – Lightweight EPS high-pressure foam tray with a 5° slope toward the drain for smooth water flow. Its textured surface helps mortar adhere evenly.

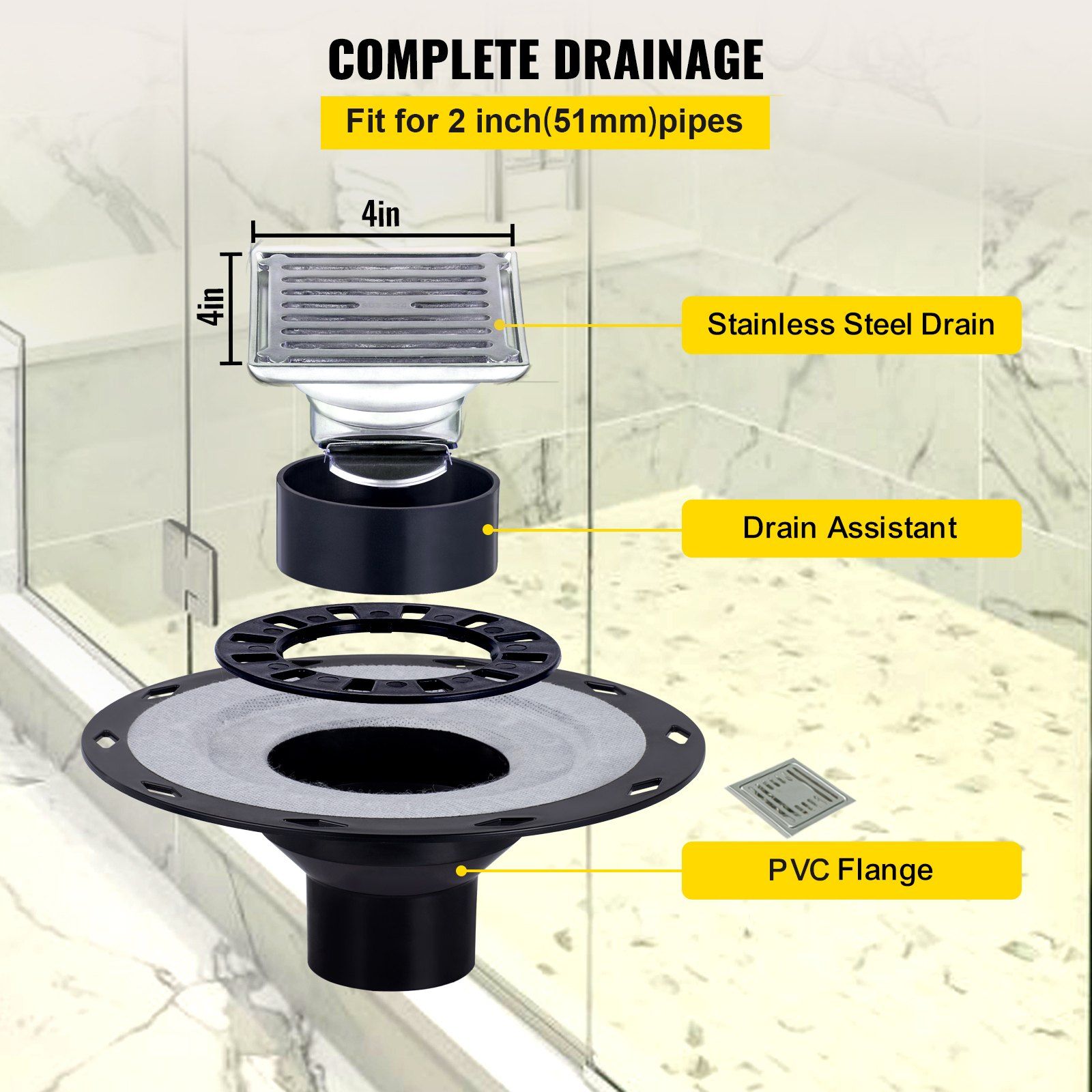

Drainage Accessories – Includes a sturdy PVC flange and automatic seal grate to keep water moving efficiently. Two adjustable XPS curbs make custom sizing easy.
Water Impermeable – Dual HDPE membranes (small and large rolls) and six corners protect against leaks, simplifying installation.
Stainless Steel Trowel – Features a square-tooth edge for better mortar grip and secure tile adhesion.
Effortless Installation – Comes complete with all watertight components needed to finish your shower or dog grooming area quickly.
Details
This all-in-one waterproofing solution simplifies the process of creating a reliable base for grooming spaces, wet rooms, or custom showers. Built for long-lasting protection and easy DIY setup, it’s both practical and professional-grade.
| Specification | Description |
|---|---|
| Shower Tray Size | 48" x 72" (1219.2 mm x 1828.8 mm) |
| Tray Material | EPS High-Pressure Foam |
| Grate Material | 304 Stainless Steel |
| Drain Diameter | 4" (10 cm) |
| Shower Curb Size | 48" × 4.5" × 6" (1219.2 mm × 114.3 mm × 152.4 mm) |
| Flange Material | PVC |
| Membrane Size | 121.3 sq ft (11.3 m²) |
| Incline | 5° Slope Toward Center |
Complete the setup with our VEVOR Tile Leveling System — perfect for achieving smooth, even tile finishes in pet wash spaces.
